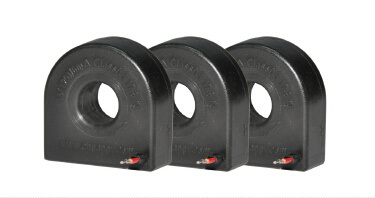

Single Phase Machine Voltage Current Detector for Measuring Voltage and Current Properties

Product Description:

The MV Current Transformer is a high-quality product designed for measuring current usage in various applications. Proved by KEMA, this Magnetic Voltage Current Transmitter ensures reliable and accurate readings for precise monitoring and control.

With a primary use for measuring purposes, the MV Current Transformer is an essential component in electrical systems where current monitoring is required. Its usage as a Machine Voltage Current Transducer makes it ideal for use in industrial settings, power distribution networks, and other applications where current measurement is crucial.

Compliant with the IEC60044-1(IEC61869-1&2) standard, this Measuring Voltage Current Transformer meets the necessary requirements for safety, performance, and reliability. It has been tested and proven to deliver consistent and precise results, making it a trusted choice for current measurement applications.

The MV Current Transformer features a secondary winding option of 1A or 5A, providing flexibility and compatibility with a wide range of current monitoring systems. This versatility allows for seamless integration into existing setups and ensures accurate measurements in various environments and conditions.

Features:

• Product Name: MV Current Transformer
• Ratio: 20-200/5A
• Applied Standard: IEC 61869-1 &2 (IEC 60044-1)
• Usage: Measuring And Protection
• Winding: Multi-Winding
• Secondary Winding: 1A / 5A

Technical Parameters:

Applications:

The MV Current Transformer, also known as a Motor Voltage Current Transformer, is a crucial component in various industrial applications due to its reliable performance and high accuracy. Designed for single-phase systems, this transformer offers precise measurements and protection functions, making it ideal for a wide range of scenarios.

One of the key application occasions for the MV Current Transformer is in motor control systems. By accurately measuring the current flowing to the motor, this transformer ensures the smooth operation and protection of the motor against overcurrent situations. Whether in industrial machinery or HVAC systems, the MV Current Transformer plays a vital role in maintaining the efficiency and safety of motorized equipment.

Another common scenario for the MV Current Transformer is in energy monitoring systems. As a Magnetic Voltage Current Sensor, this transformer provides accurate data on power consumption, allowing for efficient energy management and cost optimization. Whether in commercial buildings or manufacturing facilities, the MV Current Transformer helps in monitoring and controlling energy usage effectively.

Furthermore, the MV Current Transformer is widely used in power distribution networks for metering and protection purposes. As a Motorized Voltage Current Converter, this transformer offers reliable measurements of current and voltage levels, ensuring the stability and safety of the electrical grid. Its accuracy classes of 0.2/0.5 and 0.5/5P10, along with a ratio of 20-200/5A, make it a versatile solution for various utility applications.

Compliant with international standards such as IEC 61869-1 & 2 (IEC 60044-1), the MV Current Transformer guarantees high-quality performance and compatibility with existing systems. Whether used for measuring or protection functions, in motor control systems or energy monitoring applications, the MV Current Transformer proves to be a reliable and efficient solution for diverse industrial and utility scenarios.

Customization:

Our Product Customization Services for the MV Current Transformer include:

Ratio: 20-200/5A

Usage: Current Usage

Installation Site: Outdoor

Ambient Temperature: -5℃ To +40℃

Winding: Multi-Winding

Packing and Shipping:

Product Packaging and Shipping Information for MV Current Transformer:

- The MV Current Transformer will be carefully packaged in a sturdy cardboard box to ensure safe transportation.

- Each unit will be wrapped in protective packaging material to prevent any damage during shipping.

- The box will be labeled with the product name, quantity, and any other relevant information for easy identification.

- The package will be securely sealed to prevent any tampering during transit.
